Toyota Tacoma (2015-2018) Service Manual: On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT CAMSHAFT TIMING GEAR BOLT

(a) Remove the camshaft timing oil control solenoid assembly (See page ).

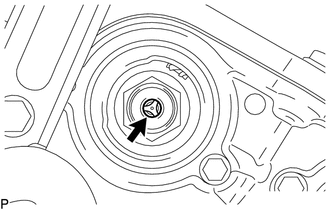

(b) Check that the plunger strokes when the plunger in the center of the camshaft timing gear bolt is pressed.

Standard stroke:

4.5 mm (0.177 in.) or more

HINT:

When pressing the plunger, there is a stepped feeling but this is not a malfunction.

If the result is not as specified, replace the camshaft timing gear bolt.

(c) Install the camshaft timing oil control solenoid assembly (See page Removal ).
