ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT BRAKE MASTER CYLINDER FLUID PRESSURE CHANGE

(a) Inspect the battery positive voltage.

Battery positive voltage:

10 to 14 V

(b) Turn the ignition switch to OFF, and depress the brake pedal more than 20 times.

HINT:

When pressure in the accumulator is released, the reaction force becomes lighter and the stroke becomes longer.

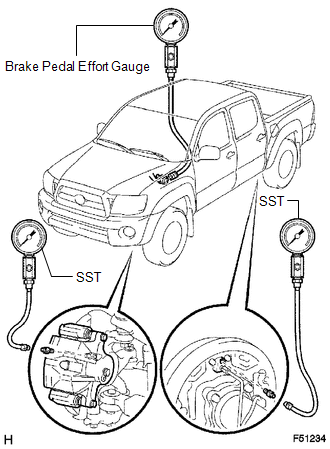

SST: 09709-29018

(d) When the booster does not operate:

(1) Depress the brake pedal and check the fluid pressure.

At 245 N (25 kgf, 55 lbf):

Front brake pressure	Rear brake pressure
1,840 kPa (18.8 kgf/cm2, 267 psi) or more	0 kPa (0 kgf/cm2, 0 psi)

At 343 N (35 kgf, 77 lbf):

Front brake pressure	Rear brake pressure
2,710 kPa (27.6 kgf/cm2, 393 psi) or more	0 kPa (0 kgf/cm2, 0 psi)

(e) When the booster operates:

(1) Turn the ignition switch to ON, and wait until the pump motor has stopped (step A).

HINT:

Pump operating sound can be heard.

(2) Turn the ignition switch to OFF, and depress the brake pedal more than 20 times (step B).

HINT:

When pressure in the accumulator is released, the reaction force becomes lighter and the stroke becomes longer.

(3) Repeat step A and B 5 times (step C).

(4) Turn the ignition switch to ON, and check that the pump stops after approximately 8 to 14 seconds.

NOTICE:

If the pump does not stop, repeat step C again.

(5) Depress the brake pedal and check the fluid pressure.

At 49 N (5 kgf, 11 lbf):

Front brake pressure	Rear brake pressure
770 to 1,280 kPa (7.9 to 13.1 kgf/cm2, 112 to 186 psi)	800 to 1,330 kPa (8.2 to 13.6 kgf/cm2, 116 to 193 psi)

Front brake pressure

Rear brake pressure

770 to 1,280 kPa

(7.9 to 13.1 kgf/cm2, 112 to 186 psi)

800 to 1,330 kPa

(8.2 to 13.6 kgf/cm2, 116 to 193 psi)

At 98 N (10 kgf, 22 lbf):

Front brake pressure	Rear brake pressure
2,650 to 3,590 kPa (27.0 to 36.6 kgf/cm2, 384 to 521 psi)	2,680 to 3,630 kPa (27.3 to 37.0 kgf/cm2, 389 to 526 psi)

Front brake pressure

Rear brake pressure

2,650 to 3,590 kPa

(27.0 to 36.6 kgf/cm2, 384 to 521 psi)

2,680 to 3,630 kPa

(27.3 to 37.0 kgf/cm2, 389 to 526 psi)

At 147 N (15 kgf, 33 lbf):

Front brake pressure	Rear brake pressure
4,680 to 5,720 kPa (47.7 to 58.3 kgf/cm2, 679 to 830 psi)	4,710 to 5,760 kPa (48.0 to 58.7 kgf/cm2, 683 to 835 psi)

Front brake pressure

Rear brake pressure

4,680 to 5,720 kPa

(47.7 to 58.3 kgf/cm2, 679 to 830 psi)

4,710 to 5,760 kPa

(48.0 to 58.7 kgf/cm2, 683 to 835 psi)

At 196 N (20 kgf, 44 lbf):

Front brake pressure	Rear brake pressure
6,610 to 7,680 kPa (67.4 to 78.3 kgf/cm2, 959 to 1,114 psi)	6,640 to 7,720 kPa (67.7 to 78.7 kgf/cm2, 963 to 1,120 psi)

Front brake pressure

Rear brake pressure

6,610 to 7,680 kPa

(67.4 to 78.3 kgf/cm2, 959 to 1,114 psi)

6,640 to 7,720 kPa

(67.7 to 78.7 kgf/cm2, 963 to 1,120 psi)

2. INSPECT BRAKE MASTER CYLINDER OPERATION

(a) Inspect the battery positive voltage.

Battery positive voltage:

10 to 14 V

(b) Turn the ignition switch to OFF, and depress the brake pedal more than 20 times.

HINT:

When pressure in the accumulator is released, the reaction force becomes lighter and the stroke becomes longer.

If the pedal does not become easy to depress, check and replace the brake line and hydraulic brake booster.

(d) Turn the ignition switch to ON and check the pump motor operation noise.

If the pump motor does not operate, check and replace the wire harness and pump motor (see page (e) Connect the Techstream. ).

(e) Connect the Techstream.

(1) Connect the Techstream to the DLC3.

(2) Turn the ignition switch to ON.

(3) Select "Active Test" mode on the Techstream.

HINT:

Refer to the Techstream operator manual for further details.
To protect the solenoids, Techstream turns off automatically 2 seconds after every solenoid has been turned on.

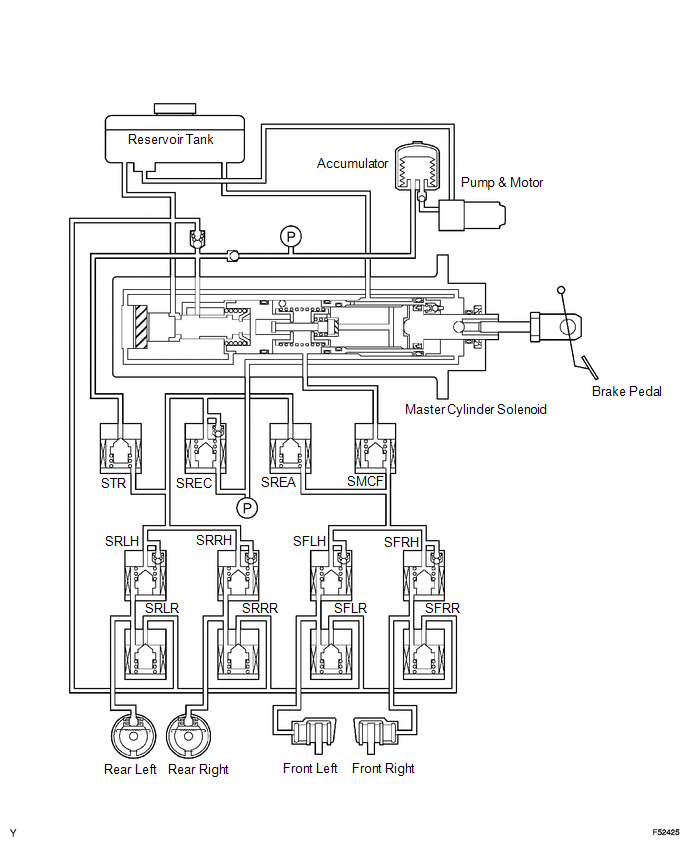

(f) Check the master cylinder solenoid operation.

Inspection Order (Step)	SOL Selected By Active Test	SOL To Be Activated
D	TRAC Solenoid (SRCF)	SMCF
E	TRAC Solenoid (SRCF & SRCR)	SREA and SMCF
F	ABS Solenoid (SFRH)	SFRH
G	ABS Solenoid (SFLH)	SFLH
H	ABS Solenoid (SFRR & SFRH)	SFRR and SFRH
I	ABS Solenoid (SFLR & SFLH)	SFLR and SFLH
J	TRAC Solenoid (SRMF)	SREC
K	TRAC Solenoid (SRMF & SRMR)	STR and SREC
L	ABS Solenoid (SRRH)	SRRH
M	ABS Solenoid (SRLH)	SRLH
N	ABS Solenoid (SRRR & SRRH)	SRRR and SRRH
O	ABS Solenoid (SRLR & SRLH)	SRLR and SRLH

(g) Inspect front VSC solenoid (SMCF) operation (step D).

HINT:

ON: Activate SMCF and check that the brake pedal cannot be depressed (the pedal feels tight).
OFF: Deactivate SMCF and check that the brake pedal can be depressed.

(1) Select "TRAC Solenoid (SRCF)" on the Techstream.

(2) Turn the "TRAC Solenoid (SRCF)" on by the Techstream, then depress the brake pedal with stable force and check that the pedal cannot be depressed.

If the pedal can be depressed, replace the hydraulic brake booster.

HINT:

To protect the solenoid, Techstream turns off automatically 2 seconds after every solenoid has been turned on.

NOTICE:

When operating it continuously, set the interval of more than 20 seconds.

(3) Release the brake pedal.

(4) When the solenoid is off, depress the brake pedal again and check that the brake pedal can be depressed.

If the pedal can be depressed, replace the hydraulic brake booster.

(h) Prepare the vehicle.

(1) Jack up and support the vehicle.

(2) Release the parking brake pedal (lever).

(3) Shift the shift lever to the "N" position and check the rear wheels by rotating them by hand.

(i) Inspect front VSC solenoid (SREA) operation (step E).

HINT:

ON: Activate SREA and SMCF, depress the brake pedal, and then check that the front wheels do not rotate.
OFF: Deactivate SREA and SMCF. Reactivate SMCF, depress the brake pedal, and then check that the front wheels rotate.

(1) Select "TRAC Solenoid (SRCF & SRCR)" on the Techstream.

(2) Turn the "TRAC Solenoid (SRCF & SRCR)" on simultaneously by the Techstream, then depress the brake pedal with stable force.

(3) When the solenoids are on, check that the front wheels do not rotate by hand.

If the front wheels rotate, replace the brake master cylinder.

HINT:

To protect the solenoids, Techstream turns off automatically 2 seconds after every solenoid has been turned on.
When rotating the wheels fast, the fail-safe function is activated and judgement cannot be made properly. So rotate the wheels as slowly as possible.

NOTICE:

When operating it continuously, set the interval of more than 20 seconds.

(4) When the solenoids are off, turn the "TRAC Solenoid (SRCF)" on again, then depress the brake pedal and check the front wheels by rotating them by hand.

If front wheels stop, replace the hydraulic brake booster.

(5) When the "TRAC Solenoid (SRCF)" is off, depress the brake pedal again and check that the brake pedal can be depressed.

If the pedal can be depressed, replace the hydraulic brake booster.

(j) Inspect front ABS solenoid (SFRH) operation (step F).

HINT:

ON: Activate SFRH, depress the brake pedal, and then check that the right front wheel rotates.
OFF: Deactivate SFRH, depress the brake pedal, and then check that the front right wheel does not rotate.

(1) Select "ABS Solenoid (SFRH)" on the Techstream.

(2) Turn the "ABS Solenoid (SFRH)" on by the Techstream, then depress the brake pedal with stable force.

(3) When the solenoid is on, check the right front wheel by rotating it by hand.

If the right front wheel stops, replace the hydraulic brake booster.

HINT:

To protect the solenoid, Techstream turns off automatically 2 seconds after every solenoid has been turned on.
When rotating the wheel fast, the fail-safe function is activated and judgement cannot be made properly. So rotate the wheel as slowly as possible.

NOTICE:

When operating it continuously, set the interval of more than 20 seconds.

(4) When the solenoid is off, depress the brake pedal again and check that the right front wheel does not rotate by hand.

If the right front wheel rotates, replace the hydraulic brake booster.

(k) Inspect front ABS solenoid (SFLH) operation (step G).

HINT:

ON: Activate SFLH, depress the brake pedal, and then check that the left front wheel rotates.
OFF: Deactivate SFLH, depress the brake pedal, and then check that the front left wheel does not rotate.

(1) Select "ABS Solenoid (SFLH)" on the Techstream.

(2) Turn the "ABS Solenoid (SFLH)" on by the Techstream, then depress the brake pedal with stable force.

(3) When the solenoid is on, check the left front wheel by rotating it by hand.

If the left front wheel stops, replace the hydraulic brake booster.

HINT:

To protect the solenoid, Techstream turns off automatically 2 seconds after every solenoid has been turned on.
When rotating the wheel fast, the fail-safe function is activated and judgement cannot be made properly. So rotate the wheel as slowly as possible.

NOTICE:

When operating it continuously, set the interval of more than 20 seconds.

(4) When the solenoid is off, depress the brake pedal again and check that the left front wheel does not rotate by hand.

If the left front wheel rotates, replace the hydraulic brake booster.

(l) Inspect front ABS solenoid (SFRR) operation (step H).

HINT:

ON: Depress the brake pedal, activate SFRR and SFRH, and then check that the right front wheel rotates.
OFF: Deactivate SFRR and SFRH, depress the brake pedal, and then check that the right front wheel does not rotate.

(1) Select "ABS Solenoid (SFRR & SFRH)" on the Techstream.

(2) Depress the brake pedal with stable force, then turn the "ABS Solenoid (SFRR & SFRH)" on simultaneously by the Techstream.

(3) When the solenoids are on, check the right front wheel by rotating it by hand.

If the right front wheel stops, replace the hydraulic brake booster.

HINT:

To protect the solenoids, Techstream turns off automatically 2 seconds after every solenoid has been turned on.
When rotating the wheel fast, the fail-safe function is activated and judgement cannot be made properly. So rotate the wheel as slowly as possible.

NOTICE:

When operating it continuously, set the interval of more than 20 seconds.

(4) When the solenoids are off, depress the brake pedal again and check that the right front wheel does not rotate by hand.

If the right front wheel rotates, replace the hydraulic brake booster.

(m) Inspect front ABS solenoid (SFLR) operation (step I).

HINT:

ON: Depress the brake pedal, activate SFLR and SFLH, and then check that the left front wheel rotates.
OFF: Deactivate SFLR and SFLH, depress the brake pedal, and then check that the left front wheel does not rotate.

(1) Select "ABS Solenoid (SFLR & SFLH)" on the Techstream.

(2) Depress the brake pedal with stable force, then turn the "ABS Solenoid (SFLR & SFLH)" on simultaneously by the Techstream.

(3) When the solenoids are on, check the left front wheel by rotating it by hand.

If the left front wheel stops, replace the hydraulic brake booster.

HINT:

To protect the solenoids, Techstream turns off automatically 2 seconds after every solenoid has been turned on.
When rotating the wheel fast, the fail-safe function is activated and judgement cannot be made properly. So rotate the wheel as slowly as possible.

NOTICE:

When operating it continuously, set the interval of more than 20 seconds.

(4) When the solenoids are off, depress the brake pedal again and check that the left front wheel does not rotate by hand.

If the left front wheel rotates, replace the hydraulic brake booster.

(n) Inspect rear VSC solenoid (SREC) operation (step J).

HINT:

ON: Depress the brake pedal, activate SREC. Release the brake pedal and check that the rear wheels do not rotate.
OFF: Deactivate SREC and check that the rear wheels rotate.

(1) Select "TRAC Solenoid (SRMF)" on the Techstream.

(2) Depress the brake pedal with stable force, then turn the "TRAC Solenoid (SRMF)" on by the Techstream.

(3) Release the brake pedal when the solenoid is on, and check that the rear wheels do not rotate by hand.

If the rear wheels rotate, replace the hydraulic brake booster.

HINT:

To protect the solenoids, Techstream turns off automatically 2 seconds after every solenoid has been turned on.
When rotating the wheels fast, the fail-safe function is activated and judgement cannot be made properly. So rotate the wheels as slowly as possible.

NOTICE:

When operating it continuously, set the interval of more than 20 seconds.

(4) When the solenoid is off, check the rear wheels by rotating them by hand.

If the rear wheels stop, replace the hydraulic brake booster.

(o) Inspect rear VSC solenoid (STR) operation (step K).

HINT:

ON: Activate STR and SREC, then check that the rear wheels do not rotate.
OFF: Deactivate STR and SREC. Reactivate SREC and check that the rear wheels rotate.

(1) Select "TRAC Solenoid (SRMR)" on the Techstream.

(2) Turn the "TRAC Solenoid (SRMR)" on simultaneously by the Techstream.

(3) When the solenoids are on , check that the rear wheels do not rotate by hand.

If the rear wheels rotate, replace the hydraulic brake booster.

HINT:

To protect the solenoids, Techstream turns off automatically 2 seconds after every solenoid has been turned on.
When rotating the wheels fast, the fail-safe function is activated and judgement cannot be made properly. So rotate the wheels as slowly as possible.

NOTICE:

When operating it continuously, set the interval of more than 20 seconds.

(4) When the solenoids are off, check the rear wheels by rotating them by hand.

If the rear wheels stop, replace the hydraulic brake booster.

(5) When the "TRAC Solenoid (SRMF)" is off, depress the brake pedal again and check that the rear wheels do not rotate by hand.

If the rear wheels rotate, replace the hydraulic brake booster.

(p) Inspect rear ABS solenoid (SRRH) operation (step L).

HINT:

ON: Activate SRRH, depress the brake pedal, and then check that the right rear wheel rotates.
OFF: Deactivate SRRH, depress the brake pedal, and then check that the right rear wheel does not rotate.

(1) Select "ABS Solenoid (SRRH)" on the Techstream.

(2) Turn the "ABS Solenoid (SRRH)" on by the Techstream, then depress the brake pedal with stable force.

(3) When the solenoid is on, check the right rear wheel by rotating it by hand.

If the right rear wheel stops, replace the hydraulic brake booster.

HINT:

To protect the solenoids, Techstream turns off automatically 2 seconds after every solenoid has been turned on.
When rotating the wheel fast, the fail-safe function is activated and judgement cannot be made properly. So rotate the wheel as slowly as possible.

NOTICE:

When operating it continuously, set the interval of more than 20 seconds.

(4) When the solenoid is off, depress the brake pedal again and check that the right rear wheel does not rotate by hand.

If the right rear wheel rotates, replace the hydraulic brake booster.

(q) Inspect rear ABS solenoid (SRLH) operation (step M).

HINT:

ON: Activate SRLH, depress the brake pedal, and then check that the left rear wheel rotates.
OFF: Deactivate SRLH, depress the brake pedal, and then check that the left rear wheel does not rotate.

(1) Select "ABS Solenoid (SRLH)" on the Techstream.

(2) Turn the "ABS Solenoid (SRLH)" on by the Techstream, then depress the brake pedal with stable force.

(3) When the solenoid is on, check the left rear wheel by rotating it by hand.

If the left rear wheel stops, replace the hydraulic brake booster.

HINT:

To protect the solenoid, Techstream turns off automatically 2 seconds after every solenoid has been turned on.
When rotating the wheel fast, the fail-safe function is activated and judgement cannot be made properly. So rotate the wheel as slowly as possible.

NOTICE:

When operating it continuously, set the interval of more than 20 seconds.

(4) When the solenoid is off, depress the brake pedal again and check that the left rear wheel does not rotate by hand.

If the left rear wheel rotates, replace the hydraulic brake booster.

(r) Inspect rear ABS solenoid (SRRR) operation (step N).

HINT:

ON: Depress the brake pedal, activate SRRR and SRRH, and then check that the right rear wheel rotates.
OFF: Deactivate SRRR and SRRH, depress the brake pedal, and then check that the right rear wheel does not rotate.

(1) Select "ABS Solenoid (SRRR & SRRH)" on the Techstream.

(2) Depress the brake pedal with stable force, then turn the "ABS Solenoid (SRRR & SRRH)" on simultaneously by the Techstream.

(3) When the solenoids are on, check the right rear wheel by rotating it by hand.

If the right rear wheel stops, replace the hydraulic brake booster.

HINT:

To protect the solenoids, Techstream turns off automatically 2 seconds after every solenoid has been turned on.
When rotating the wheel fast, the fail-safe function is activated and judgement cannot be made properly. So rotate the wheel as slowly as possible.

NOTICE:

When operating it continuously, set the interval of more than 20 seconds.

(4) When the solenoids are off, depress the brake pedal again and check that the right rear wheel does not rotate by hand.

If the right rear wheel rotates, replace the hydraulic brake booster.

(s) Inspect rear ABS solenoid (SRLR) operation (step O).

HINT:

ON: Depress the brake pedal, activate SRLR and SRLH, and then check that the left rear wheel rotates.
OFF: Deactivate SRLR and SRLH, depress the brake pedal, and then check that the left rear wheel does not rotate.

(1) Select "ABS Solenoid (SRLR & SRLH)" on the Techstream.

(2) Depress the brake pedal with stable force, then turn the "ABS Solenoid (SRLR & SRLH)" on simultaneously by the Techstream.

(3) When the solenoids are on, check the left rear wheel by rotating it by hand.

If the left rear wheel stops, replace the hydraulic brake booster.

HINT:

To protect the solenoids, Techstream turns off automatically 2 seconds after every solenoid has been turned on.
When rotating the wheel fast, the fail-safe function is activated and judgement cannot be made properly. So rotate the wheel as slowly as possible.

NOTICE:

When operating it continuously, set the interval of more than 20 seconds.

(4) When the solenoids are off, depress the brake pedal again and check that the left rear wheel does not rotate by hand.

If the left rear wheel rotates, replace the hydraulic brake booster.

(t) Lower the vehicle.

(u) Disconnect the Techstream.

Components

COMPONENTS ILLUSTRATION ILLUSTRATION ...

Disassembly

DISASSEMBLY PROCEDURE 1. REMOVE BRAKE ACTUATOR BRACKET NO. 1 (a) Using a hexagon wrench (5 mm), remove the screw and brake actuator bracket No. 1. (b) Using a screwdriver, remove th ...

Other materials:

Precaution
PRECAUTION IGNITION SWITCH EXPRESSIONS (a) The type of ignition switch used on this model differs according to the specifications of the vehicle. The expressions listed in the table below are used in this section. Expression Ignition Switch (Position) Engine Swi ...

Off-road precautions (4WD models and PreRunner)
This vehicle has higher ground clearance and narrower tread in relation to the height of its center of gravity to make it capable of performing in a wide variety of off-road applications. Off-road vehicle feature ● Specific design characteristics give it a higher center of gravity than o ...

Theft deterrent system
Engine immobilizer system The vehicle’s keys have built-in transponder chips that prevent the engine from starting if the key has not been previously registered in the vehicle’s on-board computer. Never leave the keys inside the vehicle when you leave the vehicle. The indicator light fl ...
