INSPECTION

PROCEDURE

1. INSPECT CENTER STOP LIGHT ASSEMBLY (for LED Type Stop Light)

(a) Check the illuminates.

(1) Apply battery voltage to the connector and check the light illumination condition.

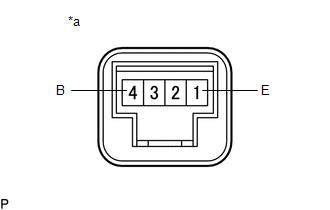

Text in Illustration

*a	Component without harness connected (Center Stop Light Assembly)

OK:

Measurement Condition

Specified Condition

Battery positive (+) → 4 (B)

Battery negative (-) → 1 (E)

Center stop light illuminates

If the result is not as specified, replace the center stop light assembly.
