Toyota Tacoma (2015-2018) Service Manual: Refrigerant Line
Components
COMPONENTS

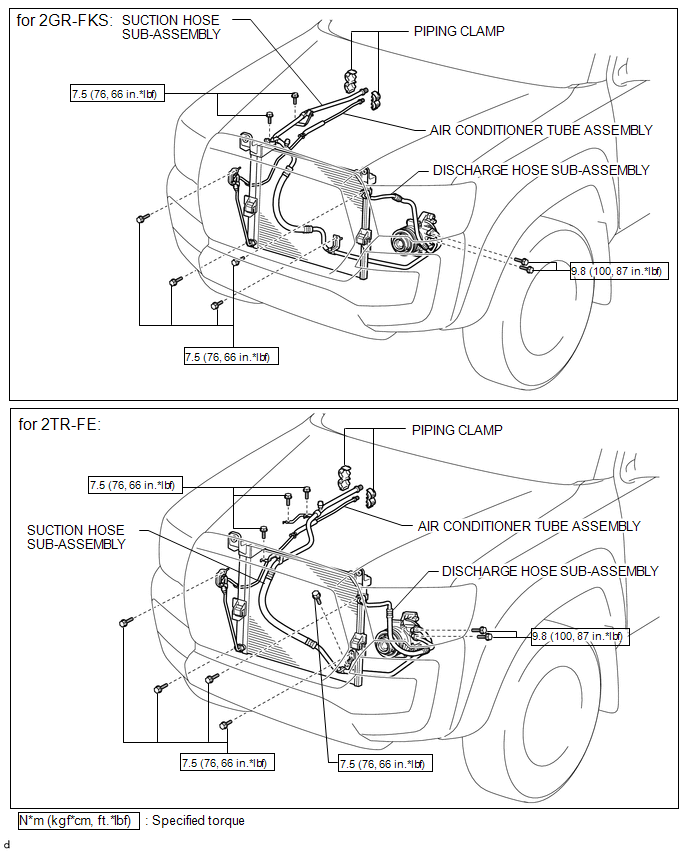

ILLUSTRATION
Ptc Heater Relay
Components
COMPONENTS
ILLUSTRATION
Inspection
INSPECTION
PROCEDURE
1. INSPECT PTC HEATER RELAY
(a) Check the resistance.
(1) Measure the resistance according to the value(s) i ...
