Toyota Tacoma (2015-2018) Service Manual: Reassembly

REASSEMBLY

CAUTION / NOTICE / HINT

NOTICE:

  • When installing the hood bulge protector, heat the hood bulge surface using the infrared light.
  • Do not heat the hood bulge excessively.

    Item

    Temperature

    Hood Bulge

    20 to 30°C (68 to 86°F)

PROCEDURE

1. INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY

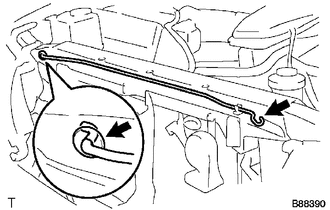

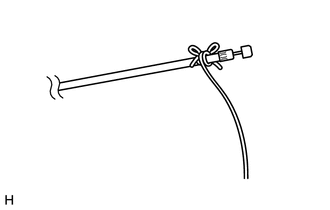

(a) Tie the string that was passed thorough the engine compartment room to the end of the hood lock control cable assembly as shown in the illustration.

(b) Pass the hood lock control cable assembly into the engine compartment.

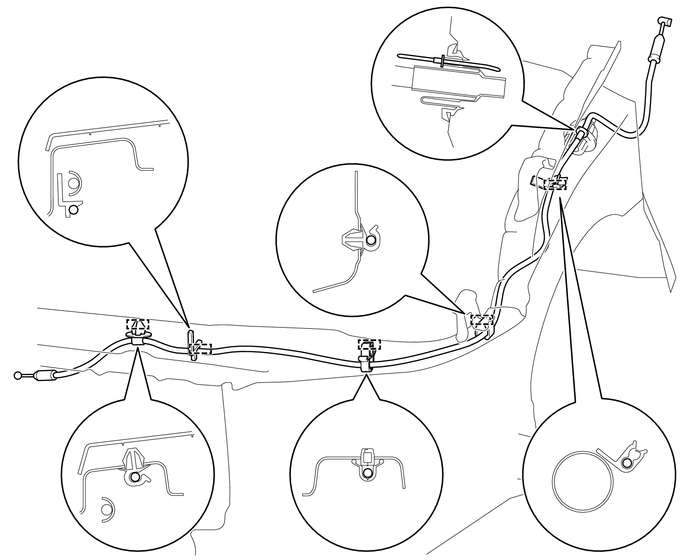

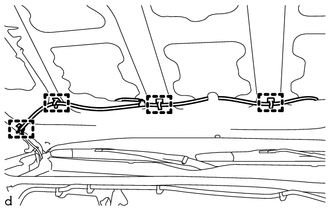

(c) Engage the 5 clamps and hood cable grommet as shown in the illustration.

(d) Remove the string from the hood lock control cable assembly.

(d) Remove the string from the hood lock control cable assembly.

2. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

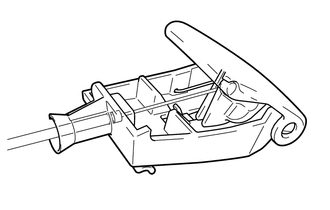

(a) Connect the hood lock control cable assembly to install the hood lock control lever sub-assembly.

(b) Engage the claw and 3 guides to install the hood lock control lever sub-assembly.

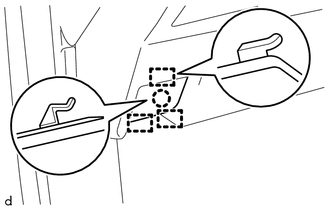

3. INSTALL HOOD STAY HOLDER

(a) Engage the 2 claws to install the hood stay holder.

4. INSTALL HOOD SUPPORT

(a) Install the grommet.

(b) Install the hood support.

5. INSTALL HOOD LOCK ASSEMBLY

6. INSTALL RADIATOR GRILLE

6. INSTALL RADIATOR GRILLE

7. CONNECT WASHER HOSE ASSEMBLY 7. CONNECT WASHER HOSE ASSEMBLY

7. CONNECT WASHER HOSE ASSEMBLY

(a) Engage the 4 claws to install the 4 clamps.

(b) Engage the 4 clamps to connect the washer hose assembly.

8. INSTALL WASHER NOZZLE SUB-ASSEMBLY

9. INSTALL HOOD TO RADIATOR SUPPORT SEAL

9. INSTALL HOOD TO RADIATOR SUPPORT SEAL

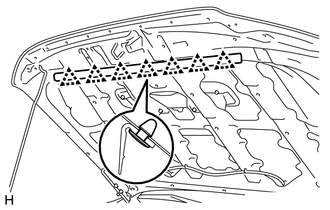

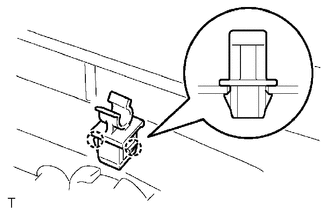

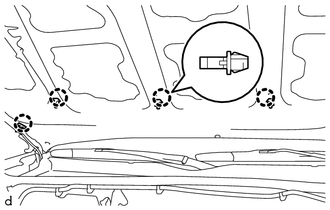

(a) Install the 7 clips and hood to radiator support seal.

10. INSTALL NO. 1 HOOD BULGE PROTECTOR (w/ Hood Bulge)

(a) Install the No. 1 hood bulge protector.

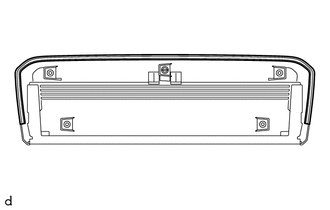

11. INSTALL HOOD AIR INTAKE GUIDE (w/ Hood Bulge)

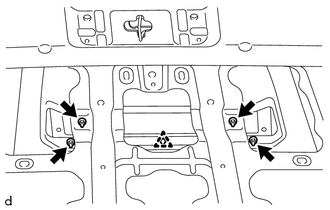

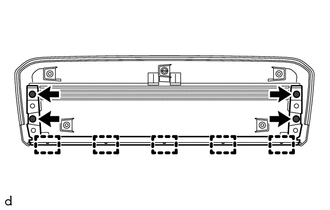

(a) Engage the 5 guides to install the hood air intake guide.

(b) Install the 4 screws.

12. INSTALL NO. 2 HOOD BULGE PROTECTOR (w/ Hood Bulge)

(a) Install the No. 2 hood bulge protector.

13. INSTALL HOOD BULGE ASSEMBLY (w/ Hood Bulge)

(a) Engage the clip from the back side of the hood panel to install the hood bulge assembly together with the air intake guide.

(b) Install the 4 nuts.
