Toyota Tacoma (2015-2018) Service Manual: Horn Relay

Toyota Tacoma (2015-2018) Service Manual / Horn / Horn Relay

On-vehicle Inspection

ON-VEHICLE INSPECTION

PROCEDURE

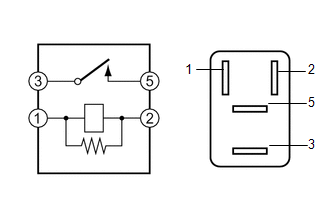

1. INSPECT HORN RELAY ASSEMBLY

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Connection	Specified Condition
3 - 5	Battery voltage not applied between terminals 1 and 2	10 kΩ or higher
3 - 5	Battery voltage applied between terminals 1 and 2	Below 1 Ω

If the result is not as specified, replace the horn relay assembly.
