Toyota Tacoma (2015-2018) Service Manual: Components
COMPONENTS

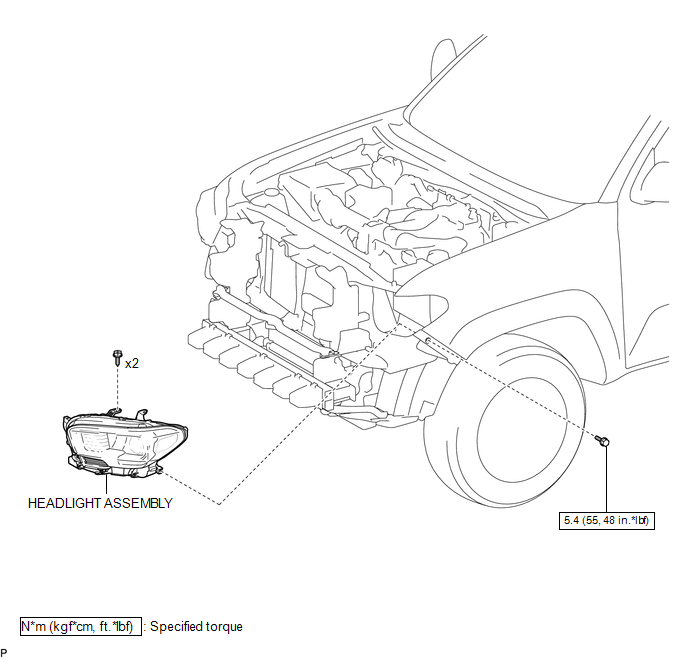

ILLUSTRATION

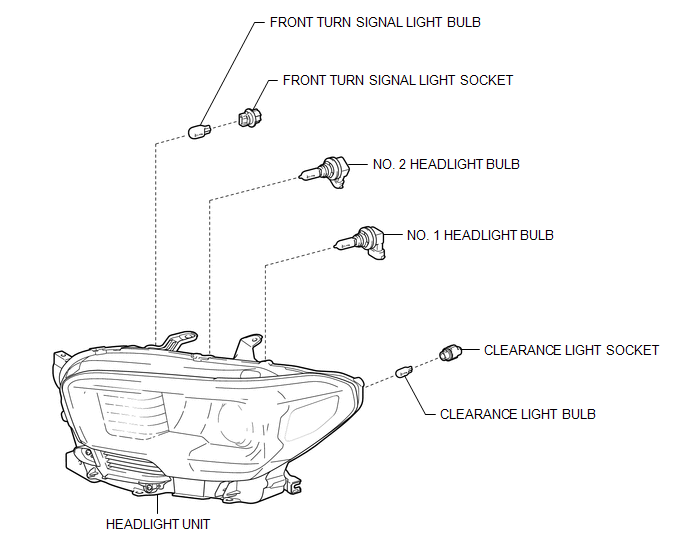

ILLUSTRATION
Disassembly
DISASSEMBLY
CAUTION / NOTICE / HINT
HINT:
Use the same procedure for both the LH and RH sides.
The procedure described below is for the LH side.
PROCEDURE
1. REMOVE NO. 1 HEADLI ...
