Toyota Tacoma (2015-2018) Service Manual: Vehicle Control History

VEHICLE CONTROL HISTORY

1. Function Overview

(a) The vehicle control history is a function that records control data (record data) when triggered by specific vehicle behavior. When DTCs are not detected according to information provided by customers, by checking the vehicle control history, it is possible to gain a quantitative grasp on diagnostic information and the history can be used as a reference to proceed with malfunction diagnosis.

(b) The vehicle control history is recorded in different storage areas designated by trigger group and it is possible to save up to 140 items in total. If storage space runs out, the data is cleared from the oldest data first for the respective storage area and new data is recorded.

(c) Each trigger receives time information from the main body ECU (time elapsed since ignition switch to ON) or the navigation system* (absolute time).

  • *: Only for factory-installed navigation systems (factory option)

(d) Data is recorded in the airbag sensor assembly EEPROM. Even if the negative (-) battery terminal is disconnected, the vehicle control history does not disappear. Also, data cannot be cleared using the Techstream.

2. Notices for Use

(a) Vehicle control history is used as support information during malfunction diagnosis for each system and cannot be used to determine the actual cause of a problem.

(b) Judgment of each trigger is based on signals from sensors and actuators (recognition value of each ECU). Therefore, make sure to inspect and adjust systems related to each trigger when using the vehicle control history.

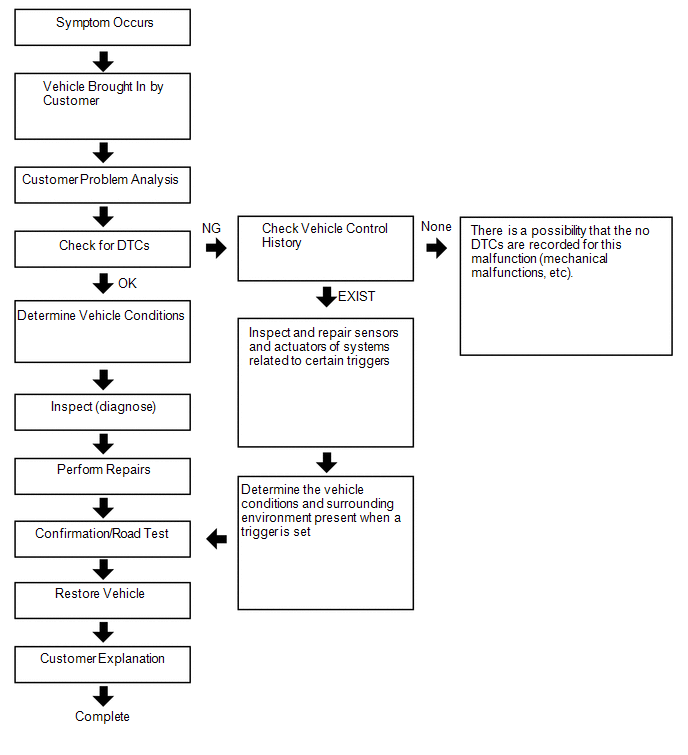

Basic Flow

3. Trigger Item

3. Trigger Item

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(c) Using the Techstream, enter the following menus: Body Electrical / SRS Airbag / Utility / Vehicle Control History.

Trigger Item Chart

Related System

Storage Area Group (storage limit)

Trigger Item Name

Trigger Description

Remarks

Engine control/Hybrid control/Automatic transmission

Area 1

(Approximately 60 times)

Accelerator pedal opening angle signal is high during low speed

An accelerator high position signal condition continues for a certain period of time while in the low speed range.

-

Accelerator high position in mid to high speed

An accelerator high position signal condition continues for a certain period of time while in the mid to high speed range.

-

Area 2

(Approximately 12 times)

Accelerator pedal opening angle signal is high immediately after brake pedal is released

An accelerator high position signal is received while in the low speed range after there is a change from brake input condition to brake and accelerator pedal released condition.

-

Area 3

(Approximately 40 times)

Accelerator pedal opening angle is medium or higher immediately after shifting to R

An accelerator mid to high position signal is received while in the low speed range immediately after the shift lever is moved to R during an accelerator low position signal condition.

Excluding hybrid vehicles

Accelerator pedal opening angle is medium or higher immediately after shifting to forward position

An accelerator mid to high position signal is received while in the low speed range immediately after the shift lever is moved to a forward position (a position other than P, N or R) during an accelerator low position signal condition.

Excluding hybrid vehicles

Accelerator pedal opening angle is medium or higher immediately after shifting to driving position

An accelerator mid to high position signal is received while in the low speed range immediately after the shift lever is moved to a driving position (a position other than P or N) during an accelerator low position signal condition.

Only hybrid vehicles

R position signal input during medium or higher accelerator signal input

An accelerator mid to high position signal condition while the shift lever is in R continues for a certain period of time after the shift lever is moved to R during an accelerator mid to high position signal condition.

Excluding hybrid vehicles

Engine control/Hybrid control/Automatic transmission

Area 3

(Approximately 40 times)

Forward position signal input during medium or higher accelerator signal input

An accelerator mid to high position signal condition continues for a certain period of time while in a forward position (a position other than P, N or R) after shifting to a forward position (a position other than P, N, or R) during an accelerator mid to high position signal condition.

Excluding hybrid vehicles

Driving position signal input during medium or higher accelerator signal input

The shift lever is moved to a driving position (a position other than P or N) during an accelerator mid to high position signal condition.

Only hybrid vehicles

Accelerator signal and brake signal input simultaneously

An accelerator mid to high position signal condition and brake input condition simultaneously continue for a certain period of time.

-

Medium or higher accelerator signal input immediately after switching to D or R

The shift lever is moved to D (or R) during an accelerator low signal condition after the shift lever is moved to R (or D). After that, an accelerator mid to high position signal is received.

-

Medium or higher accelerator signal input during N

An accelerator mid to high position signal is received while in a low speed range after the shift lever is moved to N.

-

Brake control

Area 4

(Approximately 5 times)

VSC operation history

When VSC operation starts

Only for vehicles with VSC

TRC operation history

When TRC operation starts

Only for vehicles with TRC

ABS operation history

When ABS operation starts

-

Area 5

(Approximately 4 times)

Sudden braking history

Detects forward and backward acceleration above a certain level.

Only for vehicles with VSC

Sudden turning history

Detects lateral acceleration above a certain level.

Only for vehicles with VSC

Pre-collision

Area 6

(Approximately 4 times)

PCS operation history (warning buzzer operation)

PCS (warning buzzer) operates.

Only for vehicles with PCS

PCS operation history (warning brake operation)

PCS (brake alarm) operates.

Only for vehicles with PCS (w/ Driver Monitor Camera)

PCS operation history (pre-collision brake assist operation)

PCS (pre-collision brake assist) operates.

Only for vehicles with PCS

PCS operation history (prior brake operation)

PCS (preliminary braking) operates.

Only for vehicles with PCS

PCS operation history (pre-collision brake operation)

PCS (pre-collision brake) operates.

Only for vehicles with PCS

PCS actuation history (Pre-collision Seat Belt operated)

PCS (pre-collision seat belt) operates.

Only for vehicles with PCS

PCS operation history (when acceleration above certain amount is detected)

Forward and backward acceleration above a certain amount is detected.

Only for vehicles with PCS

Cruise control/Lane departure alert/Lane-keeping assist

Torque sensor signal above certain amount is detected during LKA/LDA operation

When the LKA/LDA system is ON, a torque sensor signal above a certain amount is detected.

Only for vehicles with LKA/LDA (w/ Steering Control)

Area 7

(Approximately 15 times)

Accelerator pedal opening angle signal is high during cruise control operation

An accelerator high position signal condition continues for a certain period of time during cruise control.

Only for vehicles with cruise control

4. Record Data Items

(a) When a trigger is detected, the vehicle status (ECU data) before and after the trigger are simultaneously recorded as record data.

(b) Recording time and record data differ for each trigger.

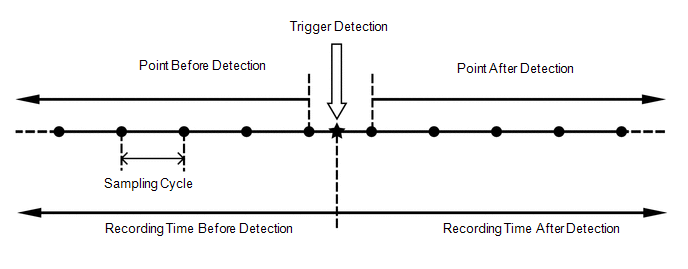

When not "PCS Operation History"

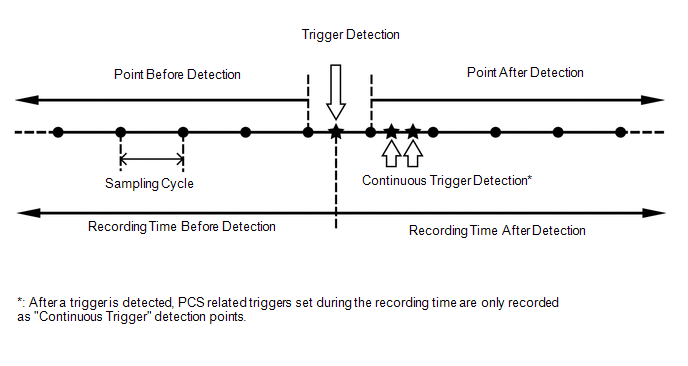

When "PCS Operation History"

When "PCS Operation History"

Record Data Record Specifications

Trigger Item

Record Data

Before Detection

After Detection

Sampling

Cycle (sec.)

ID No.

Item

Recording

Time (sec.)

Number of Points

Recording Time (sec.)

Number of Points

2

Accelerator pedal opening angle signal is high during low speed

7.5

15

7.5

16

0.5

3

Accelerator high position in mid to high speed

7.5

15

7.5

16

0.5

4

Accelerator pedal opening angle signal is high immediately after brake pedal is released

7.5

15

7.5

16

0.5

5-1

Accelerator pedal opening angle is medium or higher immediately after shifting to R

5

10

5

11

0.5

5-2

Accelerator pedal opening angle is medium or higher immediately after shifting to forward position

5-3

Accelerator pedal opening angle is medium or higher immediately after shifting to driving position

6-1

R position signal input during medium or higher accelerator signal input

5

10

5

11

0.5

6-2

Forward position signal input during medium or higher accelerator signal input

6-3

Driving position signal input during medium or higher accelerator signal input

8

Accelerator signal and brake signal input simultaneously

5

10

5

11

0.5

9

Medium or higher accelerator signal input immediately after switching to D or R

5

10

5

11

0.5

10

Medium or higher accelerator signal input during N

5

10

5

11

0.5

12

VSC operation history

5

34

5

35

0.15

13

TRC operation history

5

34

5

35

0.15

14

ABS operation history

5

34

5

35

0.15

15

Sudden braking history

5

34

5

35

0.15

16

Sudden turning history

5

34

5

35

0.15

17

Accelerator pedal opening angle signal is high during cruise control operation

5

10

5

11

0.5

18-1

PCS operation history (warning buzzer operation)

5

10

5

11

0.5

18-2

PCS operation history (warning brake operation)

18-3

PCS operation history (pre-collision brake assist operation)

18-4

PCS operation history (prior brake operation)

18-5

PCS operation history (pre-collision brake operation)

18-6

PCS operation history (pre-collision seat belt operation)

18-7

PCS operation history (when acceleration above certain amount is detected)

20

Torque sensor signal above certain amount is detected during LKA/LDA operation

8

40

0

1

0.2

Record Data Chart

Item Name

Trigger ID No.

Vehicle Speed

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Accelerator Opening Ratio

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Engine RPM Data

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Cruise Control

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Shift Position Signal

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Brake SW

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Brake Oil Pressure

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Yaw Rate Sensor Signal

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Longitudinal G Sensor Signal

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Lateral G Sensor Signal

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Throttle Opening Ratio

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Command Value of Fuel Injection Amount

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Steering Signal

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

HV Recognition Flag

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Diesel Flag

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Sensor Type Identification (Security)

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Sensor Type Identification (G Sensor Layout)

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Sensor Type Identification (G Sensor)

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Sensor Type Identification (Yaw Rate Sensor)

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Yaw G Sensor Installation Information

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7, 20

Shift Gear

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

PWR Mode

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

ECO Mode

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

Integrated Sport Mode Indicator

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

SNOW Mode

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

Valid/Invalid of Driving Mode

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

VSC OFF Lamp

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

TRC OFF Lamp

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

Valid/Invalid of TRC/VSC OFF Lamp

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

EV Mode

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

Valid/Invalid of EV Mode

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

Integrated Sport Mode Signal

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

Engine Load Factor

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10

READY Signal

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 12, 13, 15, 16

Gear Position Signal

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 15, 16

Turbine RPM/Input Shaft RPM

2, 3, 4, 5-1, 5-2, 5-3, 6-1, 6-2, 6-3, 8, 9, 10, 15, 16

Under VSC Control

12, 13, 14, 15, 16

Under ABS Control

12, 13, 14, 15, 16

Under VDM Control

12, 13, 14, 15, 16

Under TRC Operation Flag

12, 13, 14, 15, 16

FR Wheel Speed

12, 13, 14, 15, 16

FL Wheel Speed

12, 13, 14, 15, 16

RR Wheel Speed

12, 13, 14, 15, 16

RL Wheel Speed

12, 13, 14, 15, 16

Trigger Judgment Information

17, 20

Driving Force Demand Judgment Flag

17

DSS Judgment Flag

17

Cruise Control Res/ Accel SW

17

Cruise Control Set/ Coast SW

17

Cruise Control Cancel SW

17

Cruise Control Brake SW

17

Cruise Control D Signal

17

Cruise Control Main SW

17

Cruise Control Set Speed

17

Vehicle Speed (during Cruise Control)

17

Cruise Control Request Value

17

ACC Target Distance

17

ACC Target Condition

17

ACC Relative Speed

17

PCS Reception Data Invalid Flag

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

ALM Request Flag

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

ABK Request Flag

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

PBA Request Flag

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

FPB Request Flag

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

PB Request Flag

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

Extension Request Flag

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

PSB Request Flag

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

PCS READY Flag

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

PCS Display (PSB Communication)

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

PCS Display (System Fault)

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

PCS Display (Radar Dirt)

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

PCS Display (Temporarily not available)

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

Target Distance

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

Target Relative Velocity

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

Target Lateral Position

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

Target Number

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

Detection of Certain Level of Acceleration

18-1, 18-2, 18-3, 18-4, 18-5, 18-6, 18-7

LKA DDR Trigger Signal

20

Invalid of LKA DDR Data

20

Steering Wheel Release Condition

20

Steering Operation of LKA

20

Steering Operation of LDW

20

LKA Control Condition (EPS Control)

20

LKA Control Condition

20

Turn Signal Operation

20

EPS Torque Sensor Value

12, 13, 14, 15, 16, 20

Record Data Item Chart

Item Name

Item Explanation

Displayed Value

Remarks

Vehicle Speed

Displays the vehicle speed.

0 to 200 km/h

-

Accelerator Opening Ratio

Displays the accelerator position sensor opening angle.

0 to 100%

-

Engine RPM Data

Displays the engine speed.

0 to 12800 rpm

-

Cruise Control

Displays whether the cruise control is operating.

ON: Operating

OFF: Not Operating/Unequipped Vehicles

Unequipped vehicles display OFF.

Shift Position Signal

Displays the shift lever position.

N / D / R / P / 5 / 4 / 3 / 2 / LO / B / SD / Sequential Mode / Not Specified

-

Brake SW

Displays the stop light switch status.

ON: Stop light illuminated

OFF: Not Illuminated

-

Brake Oil Pressure

Displays the fluid pressure inside the master cylinder.

0 to 12.144 MPa

-

Yaw Rate Sensor Signal

Displays the angular velocity when turning.

-61 to 61 deg/s

Becomes a positive value when turning left.

Longitudinal G Sensor Signal

Displays the front and rear acceleration detected by the sensor.

-8.9725 to 8.9725 m/s2

  • Acceleration becomes a positive value.
  • Displays "INVALID" if below the smallest value.

Lateral G Sensor Signal

Displays the right and left acceleration detected by the sensor.

-8.9725 to 8.9725 m/s2

Becomes a positive value when turning left.

Throttle Opening Ratio

Displays the engine throttle opening amount.

0 to 127%

Only displayed for diesel vehicles ("INVALID" is displayed for other vehicles).

Command Value of Fuel Injection Amount

Displays the fuel injection volume (ECU command value).

0 to 120 mm3/st

Only displayed for diesel vehicles.

Steering Signal

Displays the steering angle.

-567 to 567 deg

Becomes a positive value when turning left.

HV Recognition Flag

Displays whether the vehicle is a hybrid vehicle.

HV: Hybrid vehicle

Other: Gasoline or diesel vehicle

-

Diesel Flag

Displays whether the vehicle is a diesel vehicle.

Diesel: Diesel vehicle

Other: Gasoline or hybrid vehicle

-

Sensor Type Identification (Security)

Displays whether a clinometer sensor is installed.

INSTALLED / NOT INSTALLED

Displays a fixed value for each vehicle.

Sensor Type Identification (G Sensor Layout)

Displays the acceleration sensor position angle for the vehicle forward direction.

45° / 90°

Displays a fixed value for each vehicle.

Sensor Type Identification (G Sensor)

Displays the number of acceleration sensors.

1 / 2

Displays a fixed value for each vehicle.

Sensor Type Identification (Yaw Rate Sensor)

Displays the number of yaw rate sensors.

1 / 2

Displays a fixed value for each vehicle.

Yaw G Sensor Installation Information

Displays normal direction or reverse direction (180° opposite) for the sensor position angle (acceleration sensor position angle).

NORMAL DIRECTION / REVERSE DIRECTION

Displays a fixed value for each vehicle.

Shift Gear

Displays the shift step (meter display value) when in sequential mode.

OFF: Sequential mode off

GEARS 1 to 8: Shift step on meter display

-

PWR Mode

Displays the PWR mode indicator light status.

ON: PWR mode indicator light illuminated

OFF: PWR mode indicator light not illuminated

-

ECO Mode

Displays the ECO mode indicator light status.

ON: ECO mode indicator light illuminated

OFF: ECO mode indicator light not illuminated

-

Integrated Sport Mode Indicator

Displays the SPORT mode indicator light status.

ON: SPORT mode indicator light illuminated

OFF: SPORT mode indicator light not illuminated

-

SNOW Mode

Displays the SNOW mode indicator light status.

ON: SNOW mode indicator light illuminated

OFF: SNOW mode indicator light not illuminated

-

Valid/Invalid of Driving Mode

Displays whether the driving mode information (PWR/ECO/SPORT/SNOW) is valid.

VALID / INVALID

-

VSC OFF Lamp

Displays the VSC OFF indicator light status.

ON: VSC OFF indicator light illuminated

OFF: VSC OFF indicator light not illuminated

-

TRC OFF Lamp

Displays the TRAC OFF indicator light status.

ON: TRAC OFF indicator light illuminated

OFF: TRAC OFF indicator light not illuminated

-

Valid/Invalid of TRC/VSC OFF Lamp

Displays whether the TRC OFF indicator light and VSC OFF indicator light information is valid.

VALID / INVALID

-

EV Mode

Displays the EV mode indicator light status.

ON: EV mode indicator light illuminated

OFF: EV mode indicator light not illuminated

-

Valid/Invalid of EV Mode

Displays whether the EV mode information is valid.

VALID / INVALID

-

Integrated Sport Mode Signal

Displays SPORT mode status.

NORMAL / ALL Sport / CHASSIS Sport / PWR

Vehicles without integrated SPORT modes always display NORMAL.

Engine Load Factor

Displays the engine load.

0 to 100%

Hybrid and diesel vehicles display "INVALID".

READY Signal

Displays whether driving is possible.

ON / OFF

Conventional and diesel vehicles display "INVALID".

Gear Position Signal

Displays the current gear step.

1 / 2 / 3 / 4 / 5 / 6 / 7 / 8

  • Hybrid vehicles display "INVALID".
  • CVT normally displays "1".

Turbine RPM/Input Shaft RPM

Displays the torque converter output axis speed (input shaft speed).

0 to 12650 rpm

-

Under VSC Control

Displays whether VSC control is operating.

ON: Operating

OFF: Not operating or not equipped

-

Under ABS Control

Displays whether ABS control is operating.

ON: Operating

OFF: Not operating or not equipped

-

Under VDM Control

Displays whether VDM control is operating.

ON: Operating

OFF: Not operating or not equipped

-

Under TRC Operation Flag

Displays whether TRC control is operating.

ON: Operating

OFF: Not operating or not equipped

-

FR Wheel Speed

Displays the front right wheel speed.

-67.67 to 260 km/h

-

FL Wheel Speed

Displays the front left wheel speed.

-67.67 to 260 km/h

-

RR Wheel Speed

Displays the rear right wheel speed.

-67.67 to 260 km/h

-

RL Wheel Speed

Displays the rear left wheel speed.

-67.67 to 260 km/h

-

Trigger Judgment Information

Displays whether cruise control related DTCs are displayed.

DTCS DISPLAYED / DTCS NOT DISPLAYED

-

Driving Force Demand Judgment Flag

Displays whether the drive power request method to the ECU is "Drive Power (N) Command" or another value.

DRIVE POWER / NO DRIVE POWER

Displays a fixed value for each vehicle.

DSS Judgment Flag

Displays whether a vehicle driving support system is installed.

INSTALLED / NOT INSTALLED

-

Cruise Control Res/Accel SW

Displays the cruise control RES/ACC switch status.

ON / OFF

-

Cruise Control Set/Coast SW

Displays the cruise control SET/COAST switch status.

ON / OFF

-

Cruise Control Cancel SW

Displays the cruise control CANCEL switch status.

ON / OFF

-

Cruise Control Brake SW

Displays the stop light switch status during cruise control.

ON / OFF

-

Cruise Control D Signal

Displays whether the shift position is D during cruise control.

ON / OFF

-

Cruise Control Main SW

Displays the cruise control main switch status.

ON / OFF

-

Cruise Control Set Speed

Displays the set vehicle speed for cruise control.

0 to 255 km/h

-

Vehicle Speed (during Cruise Control)

Displays the vehicle speed during cruise control.

0 to 255 km/h

-

Cruise Control Request Value

Displays the drive power requested by the cruise control system.

DRIVE POWER : 0 to 127.5%

NO DRIVE POWER : -12800 to 12700 N

"The value on Driving Force Demand Judgment Flag" determines with value is displayed.

ACC Target Distance

Displays the vehicle-to-vehicle distance to the preceding vehicle targeted by ACC (vehicle-to-vehicle distance mode).

0 to 251 m

-

ACC Target Condition

Displays the ACC system control status.

PRECEDING VEHICLE EXISTS / NO PRECEDING VEHICLE / FIXED SPEED MODE / RADAR MALFUNCTION

-

ACC Relative Speed

Displays the relative vehicle speed of the preceding vehicle targeted by ACC (vehicle-to-vehicle distance mode).

-128 to 127 km/h

-

PCS Reception Data Invalid Flag

Displays the VALID/INVALID status of PCS related data.

VALID / INVALID

-

ALM Request Flag

Displays whether an operation request was output to the warning function from PCS.

ON: Operation request

OFF: No operation request

-

ABK Request Flag

Displays whether an operation request was output to the warning brake function from PCS.

ON: Operation request

OFF: No operation request

Only displayed for vehicles with a driver monitor camera.

PBA Request Flag

Displays whether an operation request was output according to the pre-collision brake assist function from PCS.

ON: Operation request

OFF: No operation request

-

FPB Request Flag

Displays whether an operation request was output to the pre-collision function from PCS.

ON: Operation request

OFF: No operation request

-

PB Request Flag

Displays whether an operation request was output to the collision function from PCS.

ON: Operation request

OFF: No operation request

-

Extension Request Flag

Displays whether the PCS control target is the preceding vehicle.

ON: Preceding vehicle

OFF: Not preceding vehicle

A valid value is only displayed when the ALM, ABK, PBA, FPB and PB request flags are ON. Otherwise, OFF is displayed.

PSB Request Flag

Displays whether an operation request was output to the pre-collision seat belt control function from PCS.

ON: Operation request

OFF: No operation request

-

PCS READY Flag

Displays whether PCS is valid (operation permitted).

VALID / INVALID

-

PCS Display (PSB Communication)

Displays whether the pre-collision seat belt (PSB) communication is valid.

COMMUNICATION VALID / COMMUNICATION INVALID

-

PCS Display (System Fault)

Displays whether the PCS system is normal.

SYSTEM NORMAL / SYSTEM MALFUNCTION

-

PCS Display (Radar Dirt)

Displays whether the radar is normal.

RADAR NORMAL / RADAR DIRTY

-

PCS Display (Temporarily not available)

Displays whether the PCS system was temporarily unavailable.

SYSTEM AVAILABLE / SYSTEM TEMPORARILY UNAVAILABLE

-

Target Distance

Displays the PCS control target vehicle-to-vehicle distance.

0 to 163.83 m

If a target is recognized, but PCS control is determined unnecessary, the largest value is displayed.

Target Relative Velocity

Displays the PCS control target vehicle relative speed.

-51.175 to 0 m/s

If a target is recognized, but PCS control is determined unnecessary, the largest value is displayed.

Target Lateral Position

Displays the PCS control target side position.

-5.12 to 5.08 m

  • If a target is recognized, but PCS control is determined unnecessary, the largest value is displayed.
  • If the target is on the right side of the vehicle a positive value is displayed, and if the target is on the left side a negative value is displayed.

Target Number

Displays the target number determined by PCS control for targets recognized by the sensors (maximum 8 targets).

1 to 8

When the target number is 1 and the related record data (control target vehicle-to-vehicle distance, relative speed and side position) all display the largest values, PCS control has been determined unnecessary.

Detection of Certain Level of Acceleration

Displays whether acceleration above a certain level is detected.

Unsupported / No / Invalid / Yes

-

LKA DDR Trigger Signal

Displays whether the LKA/LDA trigger is set.

TRIGGER OFF / TRIGGER CONDITION 1 / TRIGGER CONDITION 2 / TRIGGER CONDITION 3

-

Invalid of LKA DDR Data

Displays whether the LKA/LDA related information is valid.

VALID / INVALID

-

Steering Wheel Release Condition

Displays judgment status of steering hands during LKA control.

ON: No hands judged

OFF: No hands not judged

-

Steering Operation of LKA

Displays steering judgment status during LKA control.

ON: Steering judged

OFF: Steering not judged

-

Steering Operation of LDA

Displays steering judgment status during LDA control.

ON: Steering judged

OFF: Steering not judged

-

LKA Control Condition (EPS Control)

Displays the EPS control (steering control) status.

ON: Operating

OFF: Not Operating

-

LKA Control Condition

Displays the LKA/LDA control status.

LKA AVAILABLE: LKA operation available

LDW AVAILABLE: LDA operation available

OFF: Control operation unavailable

-

Turn Signal Operation

Displays the turn signal operation status.

OFF / RIGHT TURN ON / LEFT TURN ON

-

EPS Torque Sensor Value

Displays the assist amount according to EPS.

-12.5 to 125 Nm

Becomes positive value when steering left.

Diagnostic Trouble Code Chart
DIAGNOSTIC TROUBLE CODE CHART If a DTC is displayed during the DTC check, check the circuit listed for the DTC in the table below (refer to the appropriate page). HINT: When the SRS warni ...

Short in Front Passenger Side Squib 2nd Step Circuit (B1815/54-B1818/54)
DESCRIPTION The front passenger side squib 2nd step circuit consists of the airbag sensor assembly and the instrument panel passenger without door airbag assembly. The circuit signals the SRS to d ...

Other materials:

Driver Side Power Window does not Operate with Power Window Master Switch
DESCRIPTION When the engine is running or the ignition switch is ON, the front power window regulator motor assembly LH is operated by the power window regulator master switch assembly. The front power window regulator motor assembly LH has motor, regulator, and ECU functions. HINT: If the ...

Removal
REMOVAL PROCEDURE 1. DRAIN AUTOMATIC TRANSMISSION FLUID (a) Remove the drain plug and gasket from the automatic transmission assembly and drain the ATF. (b) Install a new gasket and the drain plug to the automatic transmission assembl ...

Reservoir Level Switch Disconnected (C1453,C1454)
DESCRIPTION The brake fluid level warning switch sends the appropriate signal to the skid control ECU (master cylinder solenoid) when the brake fluid level drops. DTC Code DTC Detection Condition Trouble Area C1453 With the ECU termina ...

© 2011-2024 Copyright www.ttguide.net
