ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT CURTAIN SHIELD AIRBAG ASSEMBLY (for Vehicle not Involved in Collision)

(a) Perform a Diagnostic System Check (See page ).

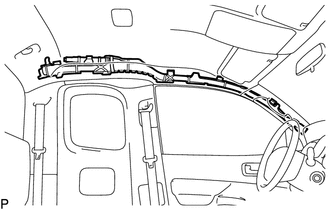

(b) With the curtain shield airbag installed on the vehicle, perform a visual check. If any of the defects mentioned below are present, replace the curtain shield airbag with a new one:

Cuts, small cracks or marked discoloration on the curtain shield airbag.

2. INSPECT CURTAIN SHIELD AIRBAG ASSEMBLY (for Vehicle Involved in Collision and Airbag not Deployed)

(a) Perform a Diagnostic System Check (See page ).

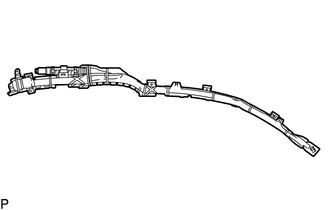

(b) With the curtain shield airbag removed from the vehicle, perform a visual check. If there are any defects as mentioned below, replace the curtain shield airbag with a new one:

Cuts, small cracks or marked discoloration on the curtain shield airbag.
Cracks or other damage to the connectors.

CAUTION:

For removal and installation of the curtain shield airbag, be sure to follow the correct procedure.
