Toyota Tacoma (2015-2018) Service Manual: Installation

INSTALLATION

PROCEDURE

1. INSTALL BRAKE PEDAL PAD

(a) Install the brake pedal pad onto the brake pedal.

2. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY

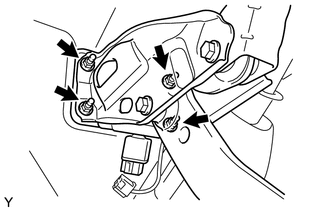

(a) Install the brake pedal support assembly with 4 nuts.

(a) Install the brake pedal support assembly with 4 nuts.

Torque:

14 N·m {145 kgf·cm, 10 ft·lbf}

(b) Connect the stop light switch connector to the stop light switch.

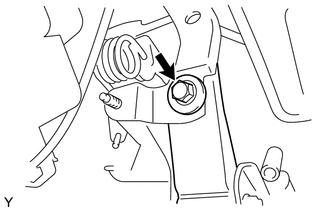

(c) Install the bolt onto the reinforcement.

Torque:

19 N·m {189 kgf·cm, 14 ft·lbf}

3. INSTALL MASTER CYLINDER PUSH ROD CLEVIS

(a) Apply lithium soap base glycol grease to the inner surface of the hole on the brake pedal lever.

(b) Install the push rod clevis onto the brake pedal lever with the push rod pin and a new clip.

4. INSPECT BRAKE PEDAL HEIGHT

Click here 5. INSPECT PEDAL FREE PLAY

5. INSPECT PEDAL FREE PLAY

Click here 6. INSPECT PEDAL RESERVE DISTANCE

6. INSPECT PEDAL RESERVE DISTANCE

Click here 7. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

7. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click here 8. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

8. CONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here Brake System

Removal
REMOVAL PROCEDURE 1. PRECAUTION NOTICE: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make ...

Brake System
...
