Toyota Tacoma (2015-2018) Service Manual: Installation

INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL REAR AIRBAG SENSOR LH

(a) Check that the ignition switch is OFF.

(b) Check that the cable is disconnected from the battery negative (-) terminal.

CAUTION:

After disconnecting the cable from the terminal, wait for at least 90 seconds before starting the operation.

(c) Install the rear airbag sensor with the nut.

Torque:

9.0 N·m {92 kgf·cm, 80 in·lbf}

NOTICE:

  • Installation of the connector is done with the sensor assembly installed. Make sure the sensor assembly is installed to the specified torque.
  • If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one.
  • When installing the sensor assembly, make sure that the SRS wiring does not interfere with any other parts and is not pinched between other parts.
  • After installation, shake the sensor assembly to check that it is not loose.

(d) Connect the connector to the rear airbag sensor LH.

NOTICE:

When connecting any airbag connector, take care not to damage the airbag wire harness.

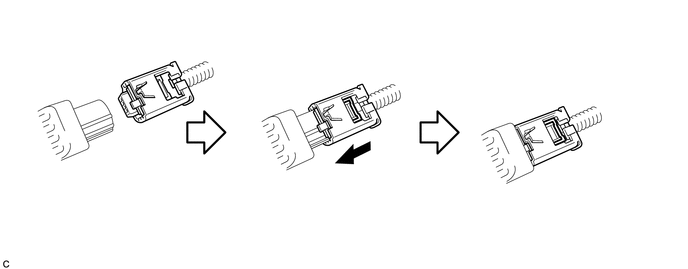

(1) Connect the connector as shown in the illustration (when locking, make sure that the outer connector locking sleeve returns to its original position and a click sound can be heard).

HINT:

HINT:

When connected, the outer connector locking sleeve will slide. Be sure not to hold the outer connector locking sleeve while connecting, as it may result in an insecure fit.

2. INSTALL REAR SEAT 3 POINT TYPE OUTER BELT ASSEMBLY LH

Click here 3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque:

5.4 N·m {55 kgf·cm, 48 in·lbf}

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click here 4. INSPECT SRS WARNING LIGHT

4. INSPECT SRS WARNING LIGHT

Click here Seat Position Sensor

Removal
