Toyota Tacoma (2015-2018) Service Manual: Inspection

INSPECTION

PROCEDURE

1. INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY (AIR CONDITIONING CONTROL ASSEMBLY)

(a) Check the resistance.

(1) Measure the resistance according to the value(s) in the table below.

Text in Illustration

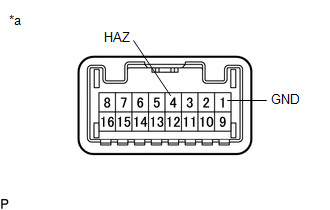

*a

Component without harness connected

(Hazard Warning Switch Assembly (Air Conditioning Control Assembly))

Standard Resistance:

Tester Connection

Switch Condition

Specified Condition

4 (HAZ) - 1 (GND)

OFF

10 kΩ or higher

4 (HAZ) - 1 (GND)

ON

Below 1 Ω

If the result is not as specified, replace the hazard warning signal switch assembly (air conditioning control assembly).
