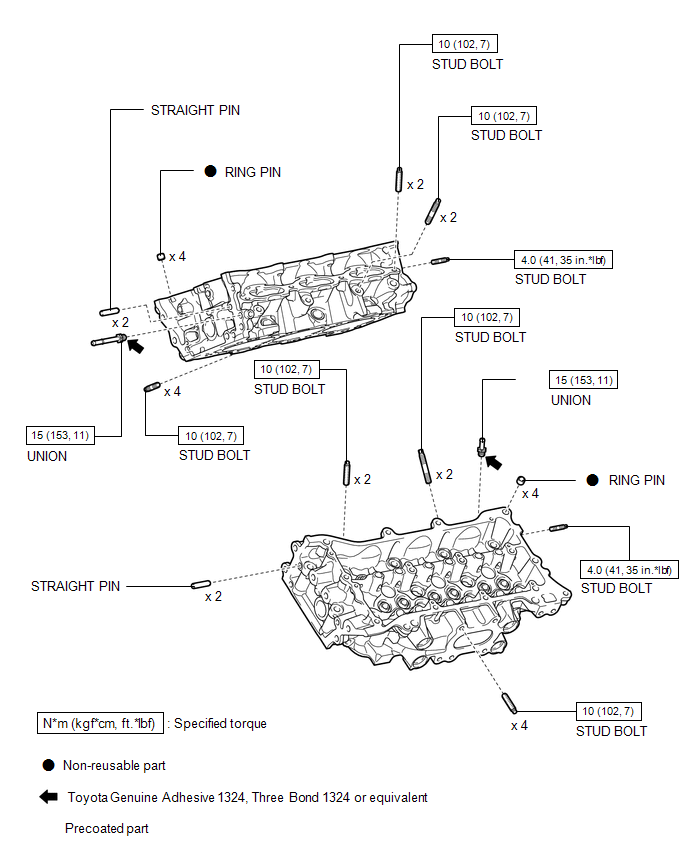

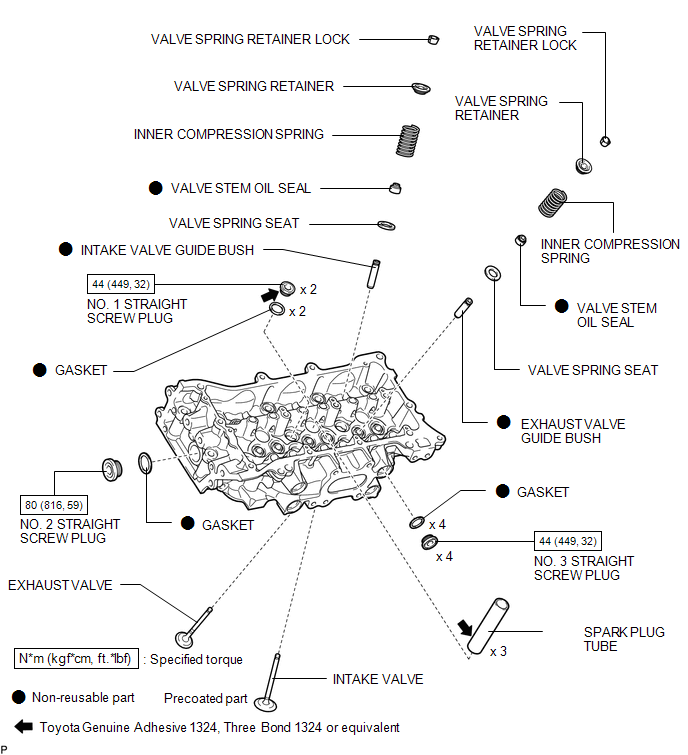

COMPONENTS
ILLUSTRATION
ILLUSTRATION

Cylinder Head
PrecautionDisassembly
DISASSEMBLY
PROCEDURE
1. REMOVE BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY
2. REMOVE BRAKE MASTER CYLINDER RESERVOIR STRAINER
3. REMOVE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY
(a) Fix the brake master cylinder in a vise between aluminum plates.
NOTICE:
Do not overtighten the vise.
...
Power Supply Drive Circuit (C1257)
DESCRIPTION
The motor relay (semiconductor relay) is built into the hydraulic brake booster
and drives the pump motor based on a signal from the skid control ECU (master cylinder
solenoid).
DTC No.
DTC Detecting Condition
Trouble Areas
C1257
...
Air Conditioning Compressor Magnetic Clutch Circuit
DESCRIPTION
When the air conditioning amplifier assembly is turned on, a magnetic clutch
on signal is sent from the MGC terminal of the air conditioning amplifier assembly.
Then, the MG CLT relay turns on to operate the magnetic clutch assembly.
WIRING DIAGRAM
CAUTION / NOTICE / HINT
NO ...
