Toyota Tacoma (2015-2018) Service Manual: Components
COMPONENTS

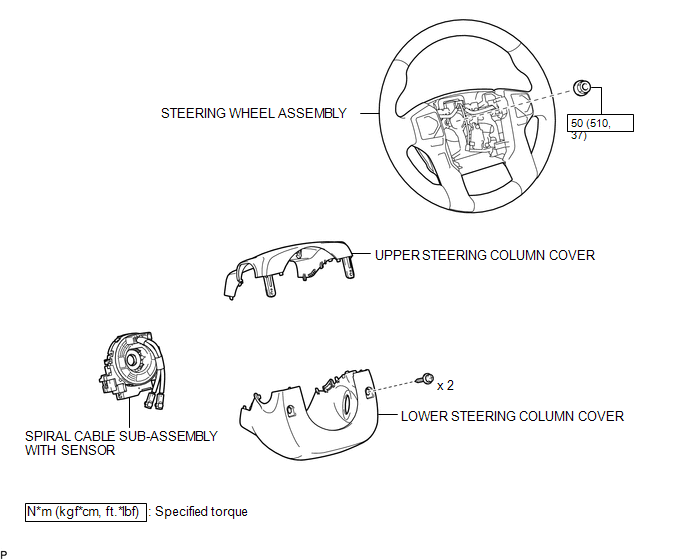

ILLUSTRATION
.png)
Spiral Cable
...
Removal
REMOVAL
PROCEDURE
1. REMOVE STEERING PAD
(See page
)
2. REMOVE STEERING WHEEL ASSEMBLY
3. REMOVE LOWER STEERING COLUMN COVER
4. REMOVE UPPER STEERING COLUMN COVER
5. REMOVE SPIR ...
