Toyota Tacoma (2015-2018) Service Manual: Components

Toyota Tacoma (2015-2018) Service Manual / Supplemental Restraint Systems / Front Airbag Sensor / Components

COMPONENTS

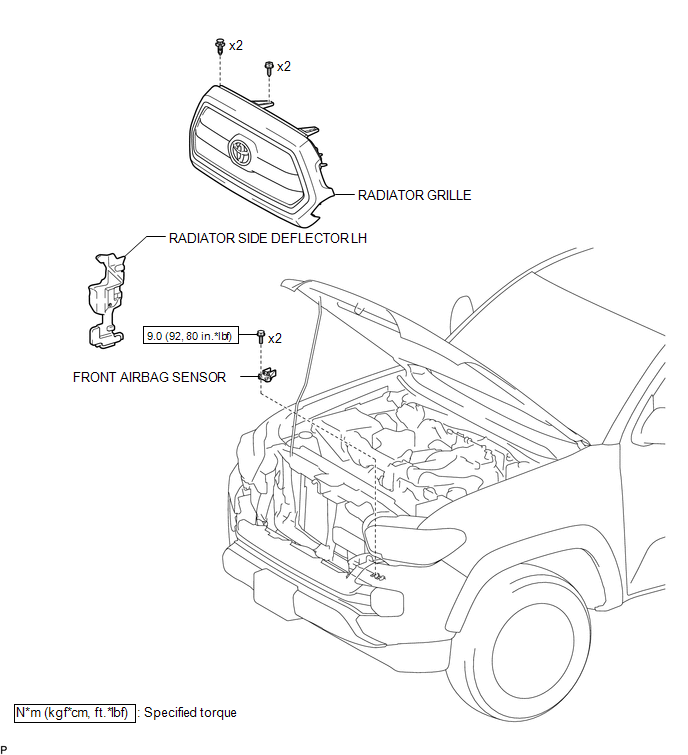

ILLUSTRATION

On-vehicle Inspection

ON-VEHICLE INSPECTION CAUTION / NOTICE / HINT CAUTION: Be sure to correctly follow the removal and installation procedures for the front airbag sensors. PROCEDURE 1. INSPECT FRONT AIRBAG SENSOR ...
