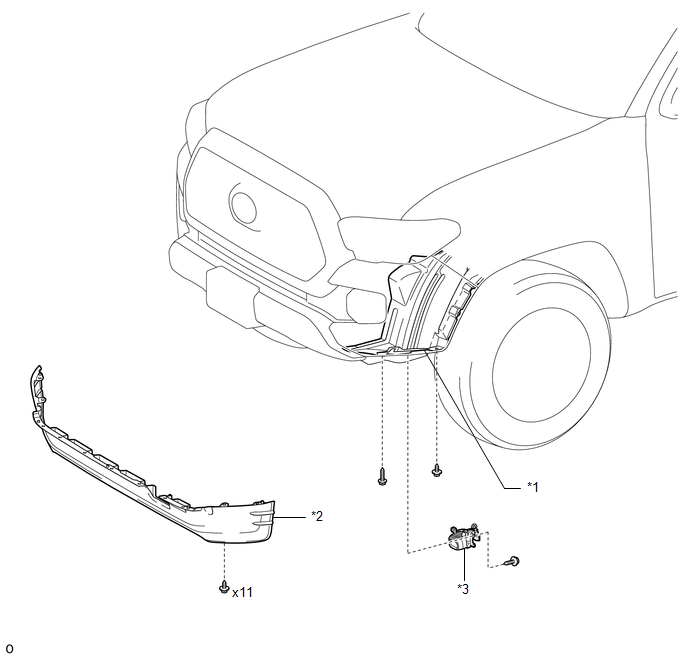

COMPONENTS
ILLUSTRATION
*1 |
FRONT FENDER LINER |
*2 |
FRONT NO.1 WHEEL OPENING EXTENSION PAD |
*3 |
FOG LIGHT UNIT |
- |
- |
