DESCRIPTION

The back sonar or clearance sonar switch assembly is installed at the base of the driver side of the instrument panel.

When the back sonar or clearance sonar switch assembly is turned on, an on signal is sent to the clearance warning ECU assembly. The intuitive parking assist system operates according to this signal.

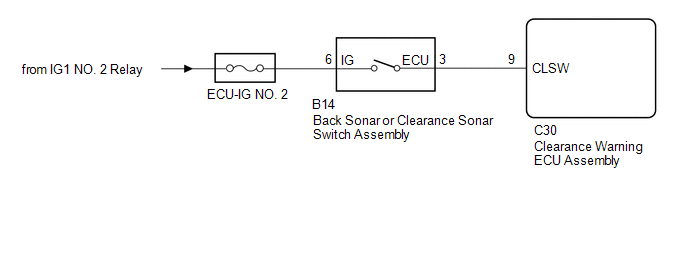

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuse for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1.	READ VALUE USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the ignition switch to ON.

(d) Enter the following menus: Body Electrical / Intuitive P/A / Data List.

(e) According to the display on the Techstream, read the Data List.

Intuitive P/A

Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
Main Switch	Back sonar or clearance sonar switch assembly/OFF or ON	OFF: Back sonar or clearance sonar switch assembly off ON: Back sonar or clearance sonar switch assembly on	-
Intuitive P/A ECU Type	Type of intuitive P/A ECU/Normal	Normal: Normal clearance sonar type	-

Tester Display

Measurement Item/Range

Normal Condition

Diagnostic Note

Main Switch

Back sonar or clearance sonar switch assembly/OFF or ON

OFF: Back sonar or clearance sonar switch assembly off

ON: Back sonar or clearance sonar switch assembly on

Intuitive P/A ECU Type

Type of intuitive P/A ECU/Normal

Normal: Normal clearance sonar type

Result

Result	Proceed to
Both of the following conditions are met: The display changes as shown above when the back sonar or clearance sonar switch assembly is operated. "Normal" is displayed.	A
"Normal" is not displayed.	B
Both of the following conditions are met: The display does not change as shown above when the back sonar or clearance sonar switch assembly is operated. "Normal" is displayed.	C

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

REPLACE CLEARANCE WARNING ECU ASSEMBLY

2.	INSPECT BACK SONAR OR CLEARANCE SONAR SWITCH ASSEMBLY

(a) Remove the back sonar or clearance sonar switch assembly (See page ).

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Switch Condition	Specified Condition
6 (IG) - 3 (ECU)	Back sonar or clearance sonar switch assembly on	Below 1 Ω
6 (IG) - 3 (ECU)	Back sonar or clearance sonar switch assembly off	10 kΩ or higher

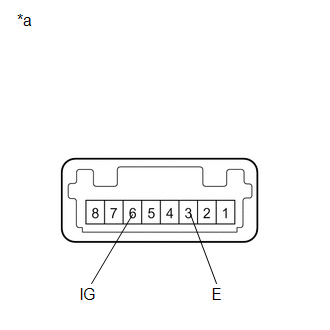

Text in Illustration

*a	Component without harness connected (Back Sonar or Clearance Sonar Switch Assembly)

REPLACE BACK SONAR OR CLEARANCE SONAR SWITCH ASSEMBLY

3.	CHECK HARNESS AND CONNECTOR (BACK SONAR OR CLEARANCE SONAR SWITCH ASSEMBLY POWER SOURCE)

(a) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
B14-6 (IG) - Body ground	Ignition switch ON	11 to 14 V
B14-6 (IG) - Body ground	Ignition switch off	Below 1 V

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.	CHECK HARNESS AND CONNECTOR (BACK SONAR OR CLEARANCE SONAR SWITCH ASSEMBLY - CLEARANCE WARNING ECU ASSEMBLY)

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
C30-9 (CLSW) - B14-3 (ECU)	Always	Below 1 Ω
C30-9 (CLSW) - Body ground	Always	10 kΩ or higher

REPLACE CLEARANCE WARNING ECU ASSEMBLY

REPAIR OR REPLACE HARNESS OR CONNECTOR
