PROCEDURE
1. |
CHECK IF A PROPER CD IS INSERTED |
(a) Make sure that the CD is an audio CD or a CD with an MP3, WMA or AAC file, and that it is not deformed, flawed, stained, deteriorated or otherwise defective.
OK:
CD is normal.
HINT:
NG | ![]() |
CD IS FAULTY |
|
2. |
CHECK THAT CD IS INSERTED PROPERLY |
(a) Check whether or not the CD is inserted upside down.
OK:
CD is properly inserted.
NG | ![]() |
SET CD PROPERLY |
|
3. |
CLEAN CD AND RECHECK |

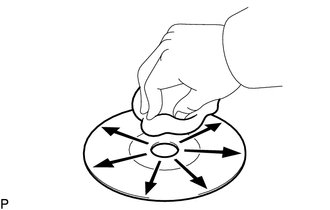

(a) Disc cleaning (1) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction. OK: Malfunction disappears. NOTICE: Do not use a conventional record cleaner or anti-static preservative. |
|
OK | ![]() |
END (CD WAS DIRTY) |
|
4. |
REPLACE CD AND RECHECK |
(a) Replace the CD with a known good one and check that the malfunction disappears.
OK:
Malfunction disappears.
OK | ![]() |
CD WAS FAULTY |
NG | ![]() |
REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY |
Brake Booster Pump Motor on Time Abnormally Long (C1252)
DESCRIPTION
The motor relay (semiconductor relay) is built into the master cylinder solenoid
and drives the pump motor based on a signal from the skid control ECU (master cylinder
solenoid).
DTC No.
DTC Detecting Condition
Trouble Areas
C1252
...
Installation
INSTALLATION
PROCEDURE
1. INSTALL HYDRAULIC BRAKE BOOSTER
(a) Install a new brake booster gasket onto the hydraulic brake booster.
(b) Install the hydraulic brake booster with the 4 nuts.
Torque:
14 N·m {145 kgf·cm, 10 ft·lbf}
(c) Using a union nut wrench, connect the 4 brake l ...
