Toyota Tacoma (2015-2018) Service Manual: AUTO LSD Indicator Light Remains ON

DESCRIPTION

During normal mode, pressing the VSC OFF switch for a short amount of time changes vehicle to AUTO LSD mode.

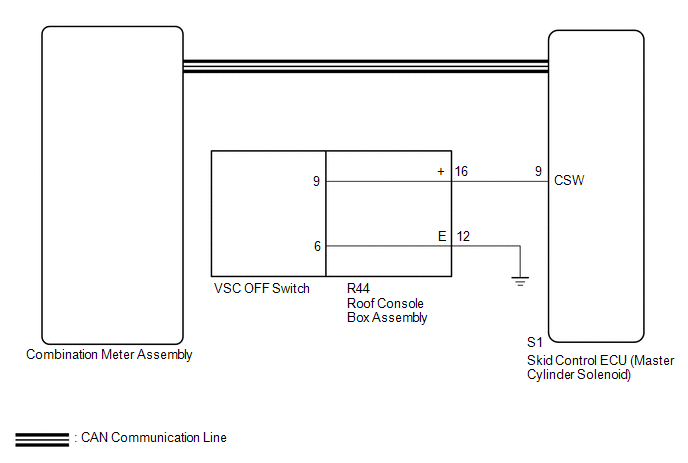

WIRING DIAGRAM

CAUTION / NOTICE / HINT

CAUTION / NOTICE / HINT

NOTICE:

  • When replacing the skid control ECU (master cylinder solenoid), perform calibration (See page ). Inspect the fuses for circuits related to this system before performing ).
  • Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1.

CHECK CAN COMMUNICATION SYSTEM

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Turn the Techstream on.

(e) Select CAN Bus Check from the System Selection Menu screen and follow the prompts on the screen to inspect the CAN bus (See page OK: OK: ).

OK:

CAN Bus Check indicates no malfunctions in CAN communication.

NG

GO TO CAN COMMUNICATION SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

OK

2.

INSPECT SKID CONTROL ECU (CSW TERMINAL)

(a) Disconnect the S1 skid control ECU (master cylinder solenoid) connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Switch Condition

Specified Condition

S1-9 (CSW) - Body ground

VSC OFF switch not pushed in

10 kΩ or higher

VSC OFF switch pushed in

Below 1 Ω

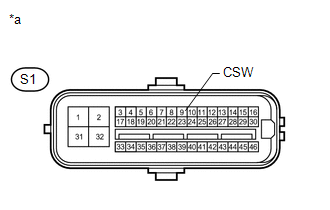

Text in Illustration

*a

Front view of wire harness connector

(to Skid Control ECU)

(c) Reconnect the S1 skid control ECU (master cylinder solenoid) connector.

NG

GO TO STEP 4

OK

3.

READ VALUE USING TECHSTREAM (AUTO LSD INDICATOR LIGHT)

(a) Turn the ignition switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the ignition switch to ON.

(d) Turn the Techstream on.

(e) Enter the following menus: Chassis / ABS/VSC/TRAC / Data List.

(f) According to the display on the Techstream, read the Data List.

ABS/VSC/TRAC

Tester Display

Test Part

Control Range

Diagnostic Note

Auto LSD Indicator Light

Auto LSD indicator light/ ON or OFF

Indicator light OFF/ON

ON: Indicator light on

OFF: Indicator light off

(g) Check the Techstream display condition of the brake warning light.

Result

Result

Proceed to

Display of the Data List remains OFF

A

Display of the Data List remains ON

B

A

GO TO METER / GAUGE SYSTEM (HOW TO PROCEED WITH TROUBLESHOOTING)

B

REPLACE MASTER CYLINDER SOLENOID

4.

INSPECT VSC OFF SWITCH

NG

REPLACE VSC OFF SWITCH

OK

5.

INSPECT ROOF CONSOLE BOX ASSEMBLY

A

REPAIR OR REPLACE HARNESS OR CONNECTOR (MASTER CYLINDER SOLENOID - ROOF CONSOLE BOX ASSEMBLY)

B

REPLACE ROOF CONSOLE BOX ASSEMBLY

C

REPLACE ROOF CONSOLE BOX ASSEMBLY
